Ball valves
Gate valve
Globe valve
Needle valve
Butterfly valves
Piston and Ball type check valve
Swing check valve

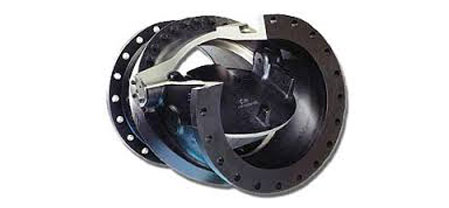

Tilting disc check valves

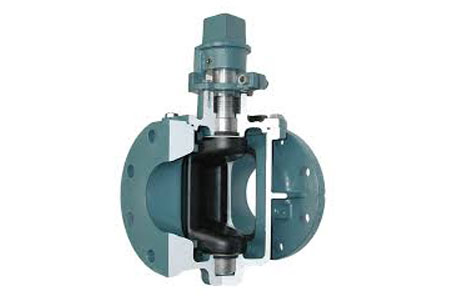

Plug valves

Ball valves

Floating ball
Trunnion mounted ball
Top and side entry design
Size 1/2” to 56”
All material types including metal to metal seats
Class 150 to 2500 lbs

Construction

One piece body
Split body
Three piece body
Top entry
Side entry

Dual plate check valve
Retainerless type, Retainer type, Spring loaded

Sizes inch (DN) 1/2” – 12”
ANSI Class (LBS) 150 – 4500
DIN rating (PN) 10 – 400
API 6A. 5000/10.000 PSI

Connections

Wafer type, Solid lug, Flanged, Hub ends, BW ends

Integral Seats, Renewable seats, screwed-in,
Stellited disc
Stellited seat & disc
Leakrate acc. API 598

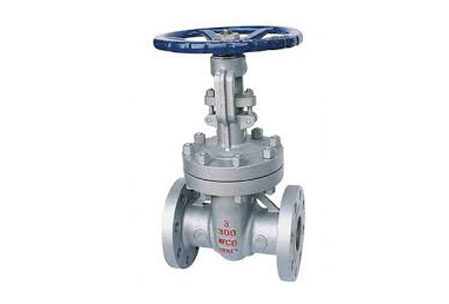

Gate valve

Full range of sizes, pressure rating and materials
Comprehensive stock held in the UK
Non-stock items and special materials made to order
Non-flan and dual plate check valves
Size 1/2” to 60”
Pressure rating 150 to 4500 lbs

Program

Sizes inch (DN) 1/2” (15) – 10”
ANSI Class (LBS) 150 – 4500
API Rating (PSI) 3.000 – 10.000
DIN Rating (PN) 10 – 400

Temperature -196°C to 850°C

Construction

Bolted bonnet, O.S. & Y., Back-seated
Screwed-in seal-welded bonnet, O.S. & Y., Back-seated
Pressure seal bonnet, O.S. & Y., Back-seated
Welded bonnet O.S. & Y., Back-seated
Bellow sealed

Through Conduit Gate valve

Bolted bonnet, Screwed bonnet, Welded bonnet, Pressure seal bonnet,
OS & Y , Inside screw stem, manual operated, Gear box Actuator.
Sizes inch (DN): 1” – 8”
ANSI Class (LBS): 150#-4500#
DIN Rating.: PN.10 -400
API 6A: 3000-10.000 PSI
Connections: Flanged., Butt weld,Clampends

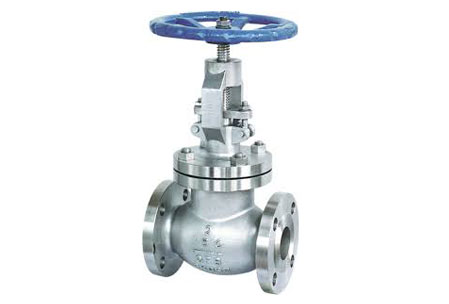

Globe valve

Full range of sizes, pressure rating and materials
Comprehensive stock held in the UK
Non-stock items and special materials made to order
Non-flan and dual plate check valves
Size 1/2” to 60”
Pressure rating 150 to 4500 lbs

Program

Sizes inch (DN) 1/2” – 12”
ANSI Class (LBS) 150 – 4500
API Rating (PSI) 3.000 – 10.000
DIN Rating (PN) 10 – 400

Temperature -196°C to 850°C

Construction

Bolted bonnet, O.S. & Y., Backseated
Screwed-in seal-welded bonnet, O.S. & Y., Backseated
Pressure seal bonnet, O.S. & Y., Backseated

Needle valve

Sizes inch 1/4” – 1”
API Rating (PSI) 3.000, 6000, 10.000ck
Sizes inch 1.1/2”-2
API Rating (LBS) 600

Range Construction

Screwed-in locked bonnet, Bolted bonnet, Welded bonnet

Testing

EN 12266 Part 1/2 2003 (BS 6755)
PED 97/23/EC “article 3.3”, Module N.A.

Client specification
Inside screw stem, OS& Y, Bellow sealed

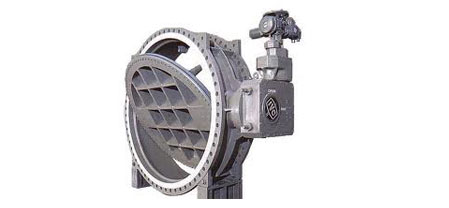

Butterfly valves

Triple eccentric metal/metal seating
Top entry for cryogenic applications
Full range of materials
Rubber lined
Specials - steam body jackets are also available to heat the disc
Size 3” to 120”
Full range of trim materials to suit service conditions

Piston and Ball type check valve

Piston type, bolted cover, loose disc & spring loaded
Ball type, bolted cover & spring loaded
Non-slam type

Sizes inch (DN) 1/2” – 12”
ANSI Class (LBS) 150 – 4500
DIN rating (PN) 10 – 400
API 6A. 5000/10.000 PSI

Renewable, screwed-in, Integral Seats
Stellited disc
Stellited seat & disc

Leakrate A according to EN 12266 Part 1/2 2003 (BS 6755)

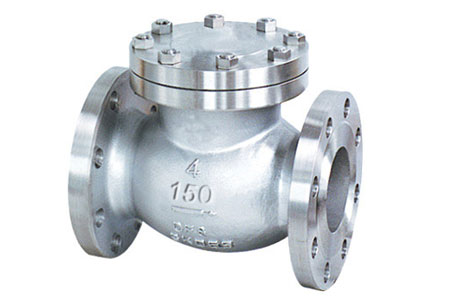

Swing check valve

Swing check valve, bolted cover, Internal hinge construction
Outside hinge construction
Sizes inch (DN) 1/2” – 10”
ANSI Class (LBS) 150 – 4500
DIN rating (PN) 10 – 400
API 6A. 5000/10.000 PSI

Pressed-in seat, Screwed seat, Sealweld seat.
Stellited seat & disc

Leakrate A according to EN 12266 Part 1/2 2003 (BS 6755)
